They say, “a picture is worth a thousand words”. So, I’ll keep the written part of this post short and instead show a bunch of photos.

I did not use an aftermarket winch mounting plate to attach the Badland winch. I used the Teryx stock mounting plate along with some spacers to raise the winch (see pic). Raising the winch is necessary to gain clearance for the fairlead & fairlead mounting plate above the Teryx front skid plate.

I drilled two new holes in the Teryx mounting plate. I also had to oblong two existing holes in the plate (see pic).

I did not install a dash-mounted rocker switch. I only intend to use the hand-held rocker switch on the 12’ extension lead. The plug receptacle is mounted inside the cab (see pic).

I cut all the wiring and soldered new fittings as needed to neatly fit the required wire lengths. There is no extra wiring bundled and zip-tied away.

I had to cut off 1/8” of the ‘blue’ cable mounting stud on the winch. If the blue cable stud is not trimmed the copper stud will make contact with the stock Teryx bumper.

That’s it. Really pretty simple install and the wiring goes together nice, clean, and tucked out of the way.

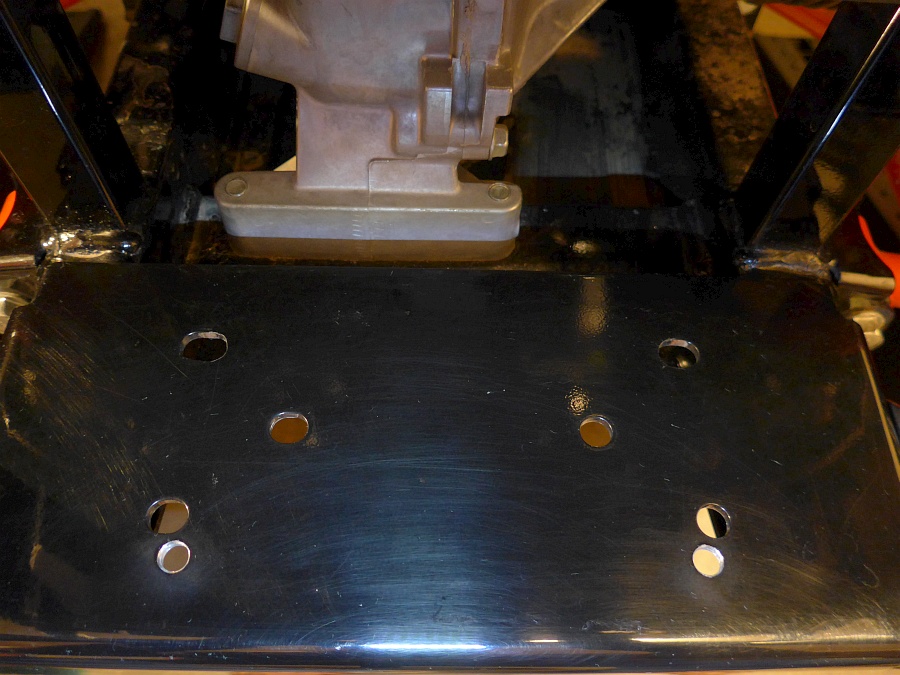

I had to drill two new 11/32” holes in the front of the Teryx mounting plate. I also had to oblong the two existing holes in the back. Note that the three existing holes on the left are already oblonged about ¼” as standard from Kawasaki.

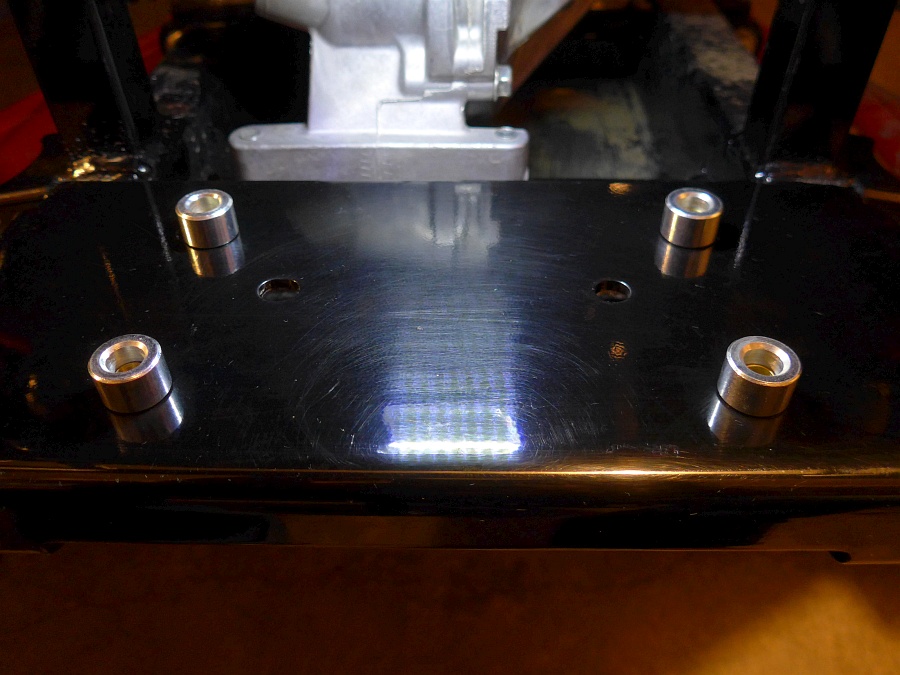

I added steel spacers. The spacers are 3/8” I.D.x 3/4” O.D.x 1/2” Tall. I also added some shims inside the spacers that fit the 8mm mounting bolts closely so the spacers self-center when the bolts are installed through the Teryx mounting plate.

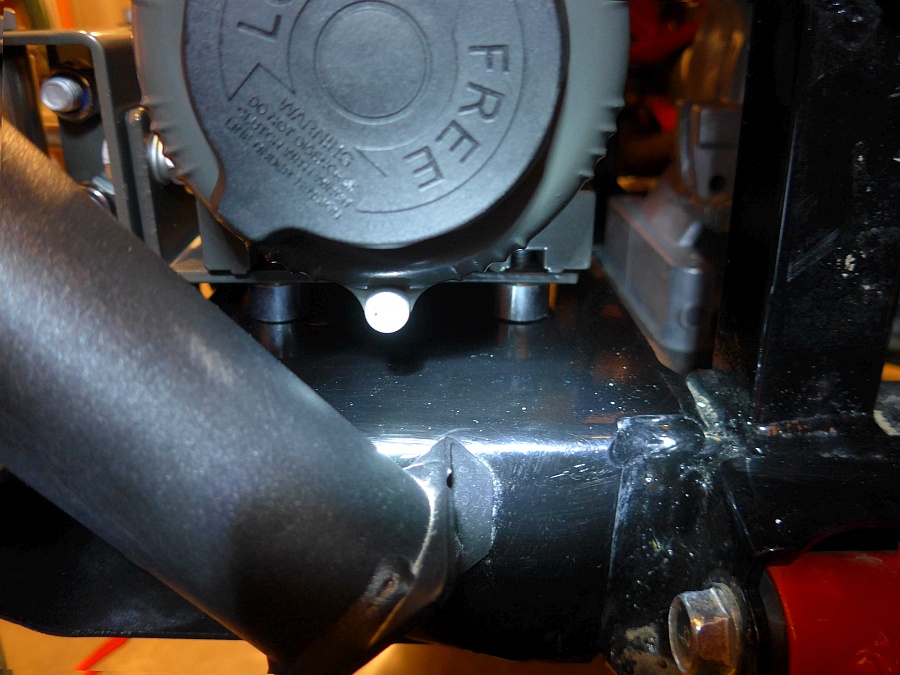

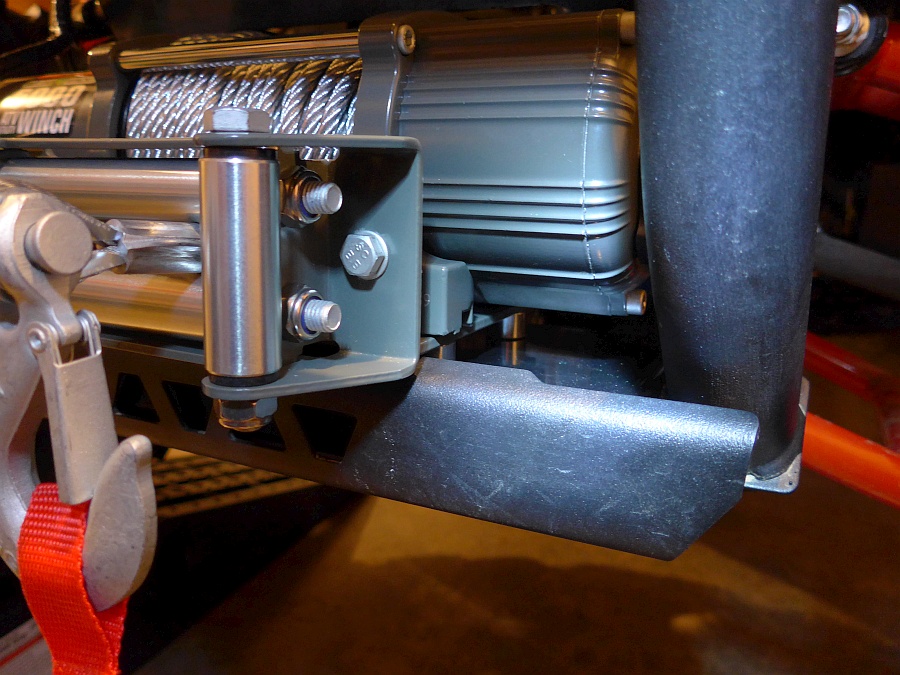

These photos show the spacers in place. The fairlead just barely clears the top of the front skid.




Longer winch mounting bolts are required.

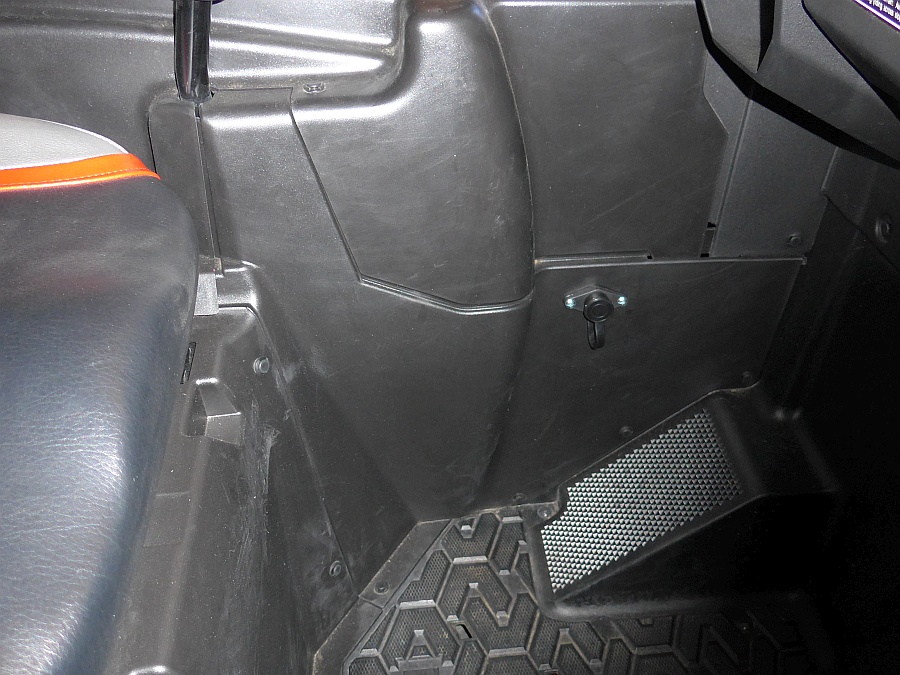

This is where I mounted the control lead receptacle. A 7/8" mounting hole is the perfect size.

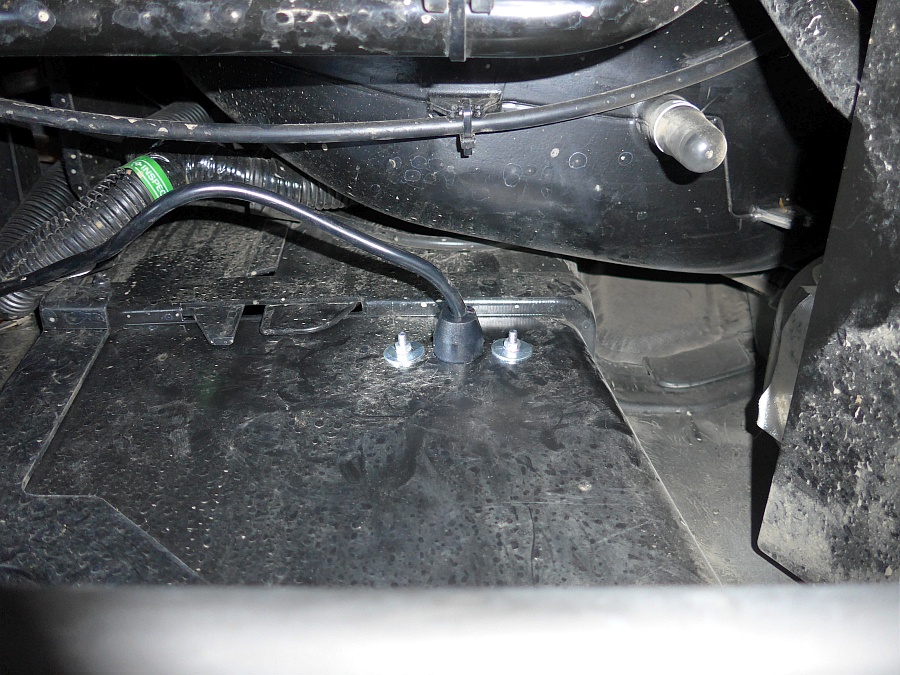

This is where the control lead receptacle enters into the inside of the Teryx center console. Access to this space is obtained by removing the center skid underneath the Teryx. The wire runs over to the existing Teryx wire harness and then follows the wire bundle straight up into the area on the left side of the fuse panel cover. It’s very easy to push the winch control wire up along the existing wire harness.

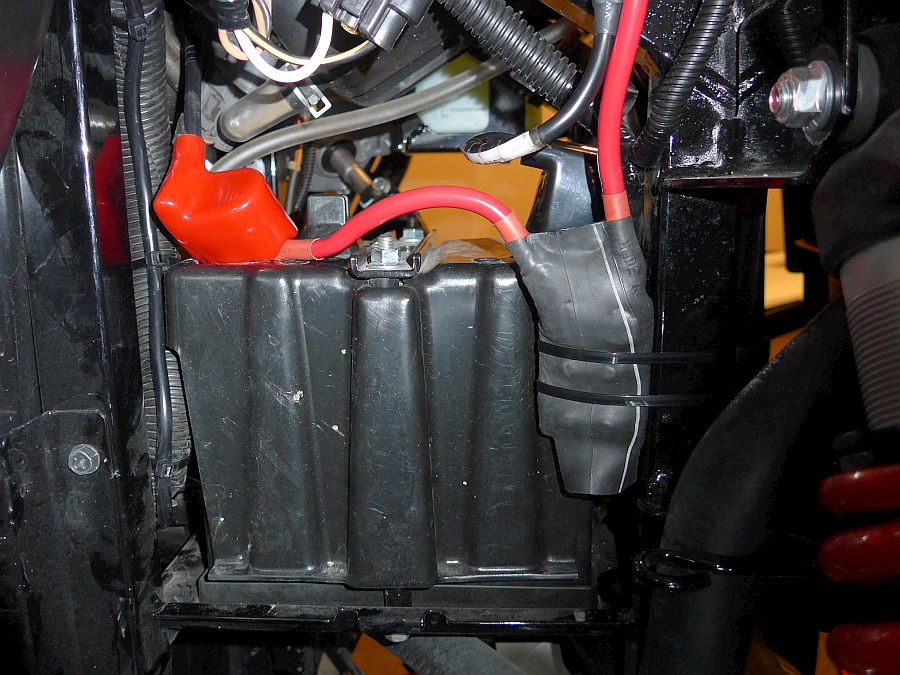

See the winch control wire zip-tied to the wiring harness on the left in this photo. Also, see the Badland’s ‘hot lead’ breakers are all bundled-up in electricians tape and a rubber sleeve (old bike tire inner tube) over the top. Then, the breakers are zip-tied to the right of the battery against the square tubing that is beside the radiator.

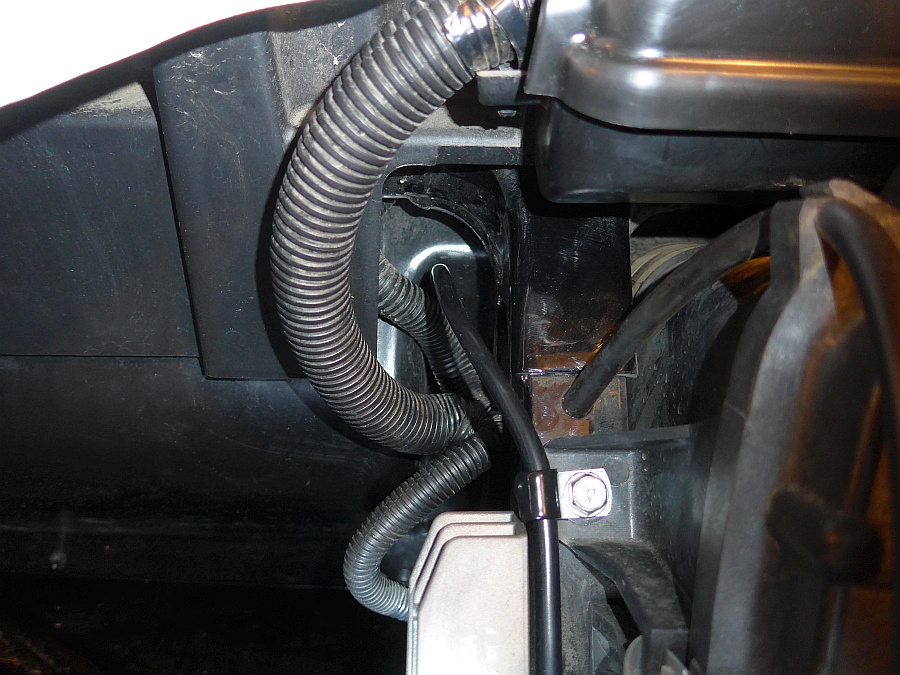

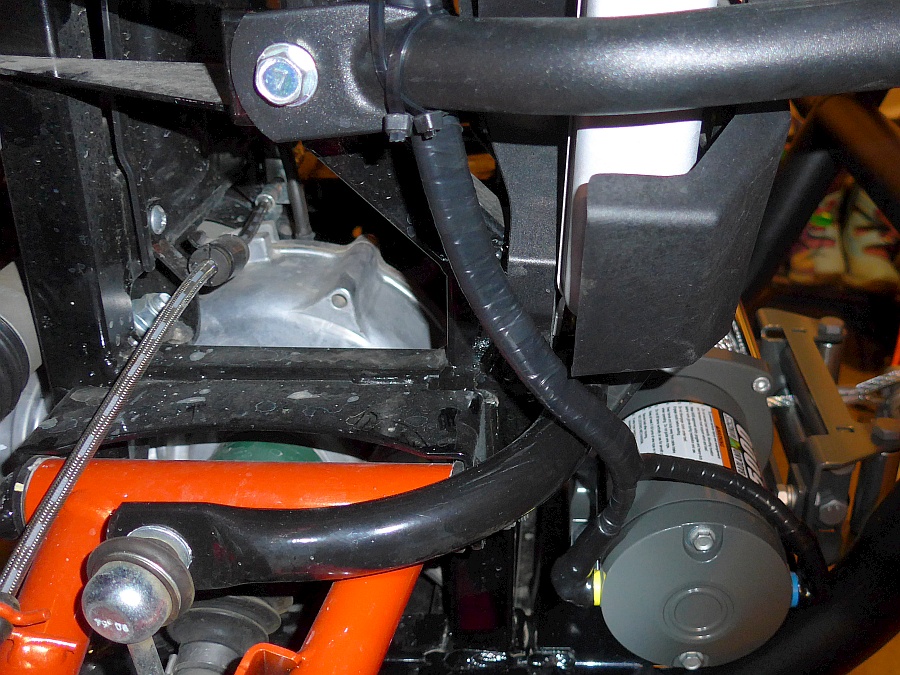

Winch control wire coming away from the firewall, alongside the air filter box, and then to the solenoid.

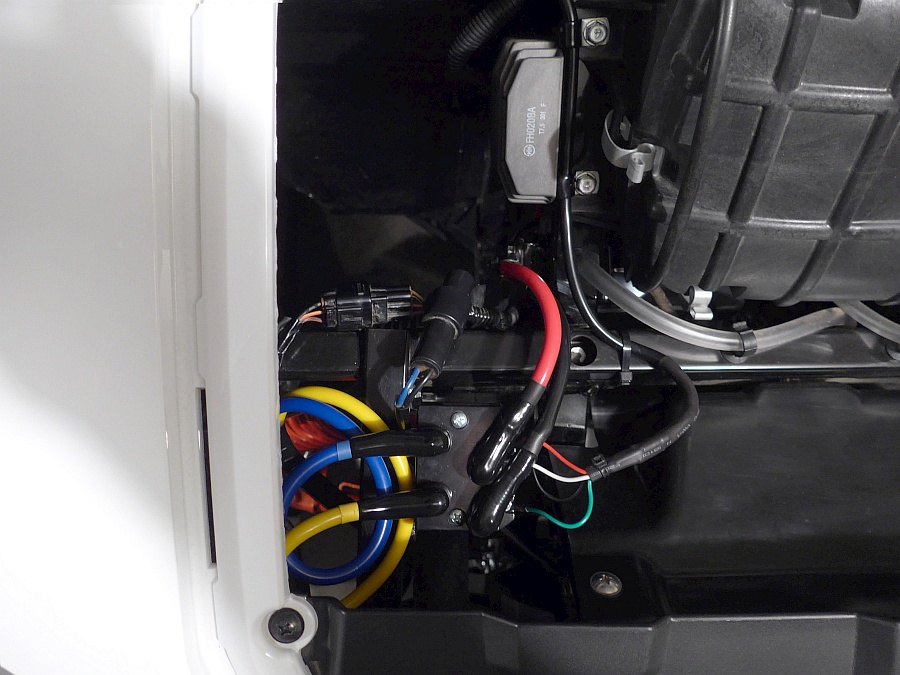

Winch wires all taped-up neatly and leading up to the solenoid.


The solenoid is attached to the square tubing that sits just to the side of the headlight housing.

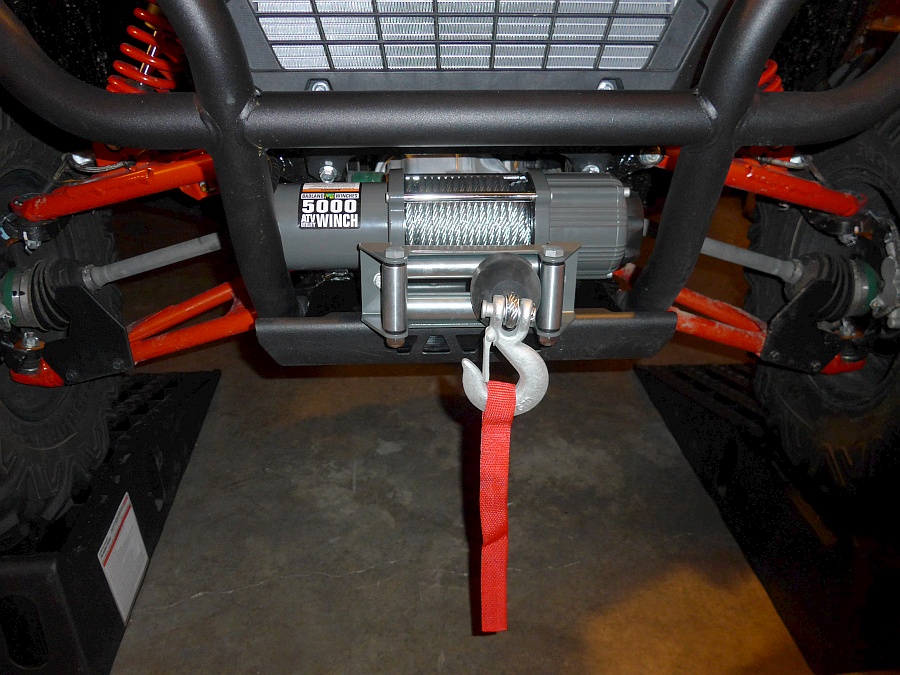

All ready to get un-stuck!


·
